#11220 G-Scale Remote Coupler – Actuated Body Mount Coupler with Gearbox (G-Scale)

Designed for use with Locomotives, Freight & Passenger cars.

Can be used with the #11130 Servo Controller, any encoder, receivers or servo control that provide an output for standard hobby servos. See Tips for using Kadee Remote Couplers with other devices (PDF)

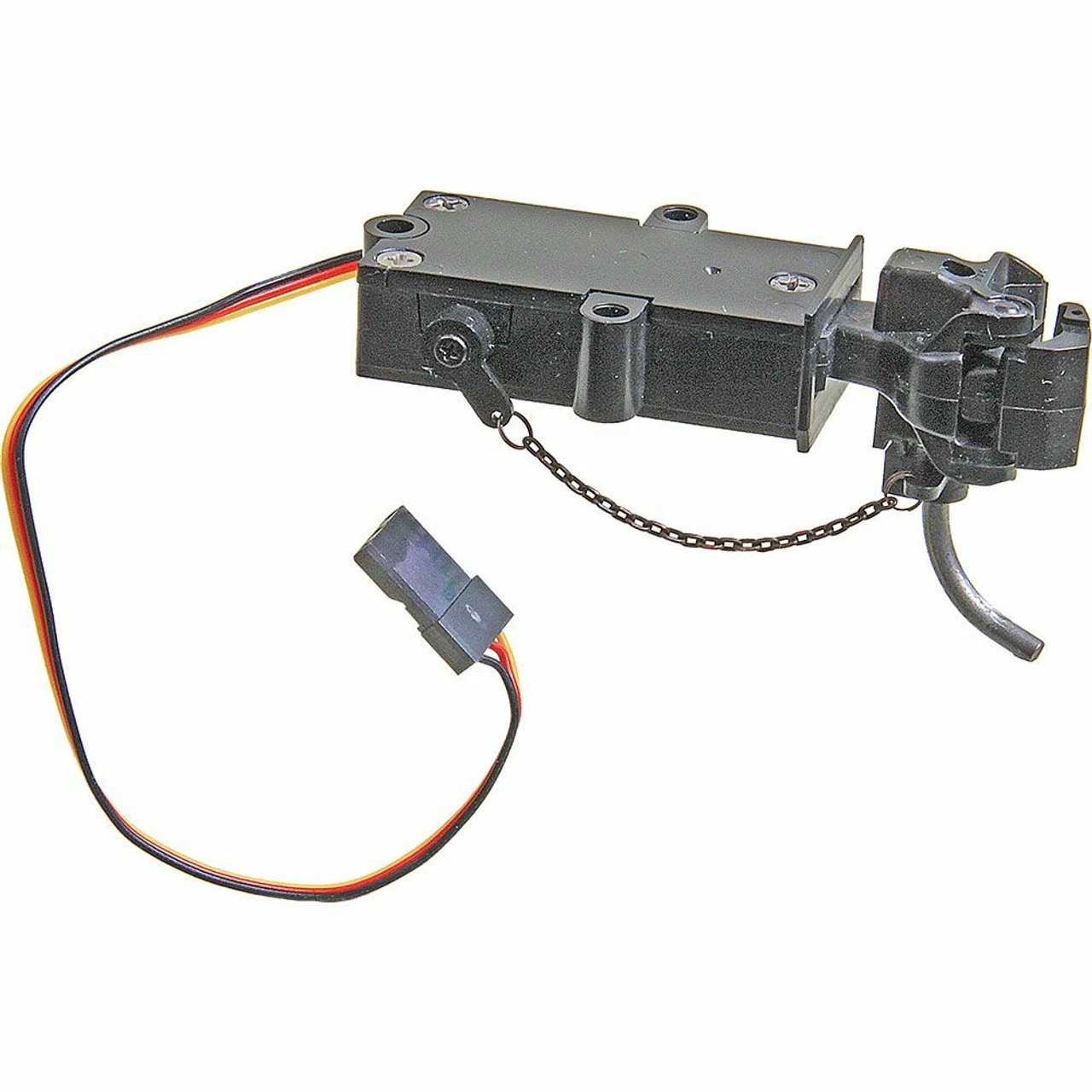

Assembled Actuated Body Mount Coupler with Gearbox for adding additional remote couplers to cars with a Kadee-RC Remote uncoupling system in place.

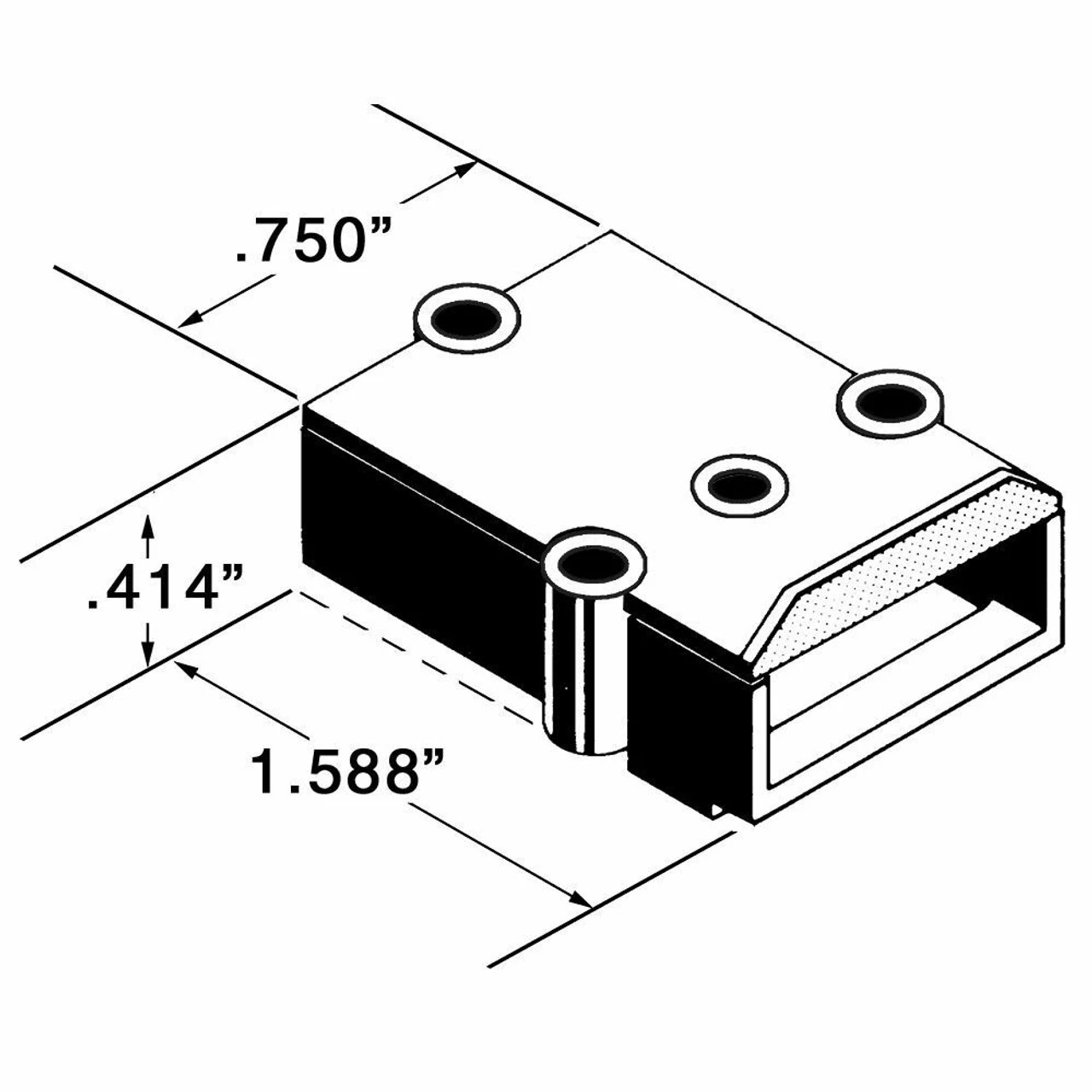

All you have to do is attach the Actuated Body Mount Coupler? with Gearbox to your #830 body mount platform?, plug the Servo into a mounted #11130 Servo Controller (sold separately) that has been wired to function with your controllers auxiliary output function and you are ready to Remote Uncouple Anywhere*. Popular controller wiring diagrams can be found on the #11130 Servo Controller product page.
* Limited uncoupling on curves.
? Some cars may require additional modification that the Basic Starter Kit is not equipped to convert.
? Use our #880 or 980 G-Scale Height Gauge to check for the correct coupler height and trip pin clearance.
Dealers: Kadee RC products are at second tier pricing.
UPC: 765484112204
