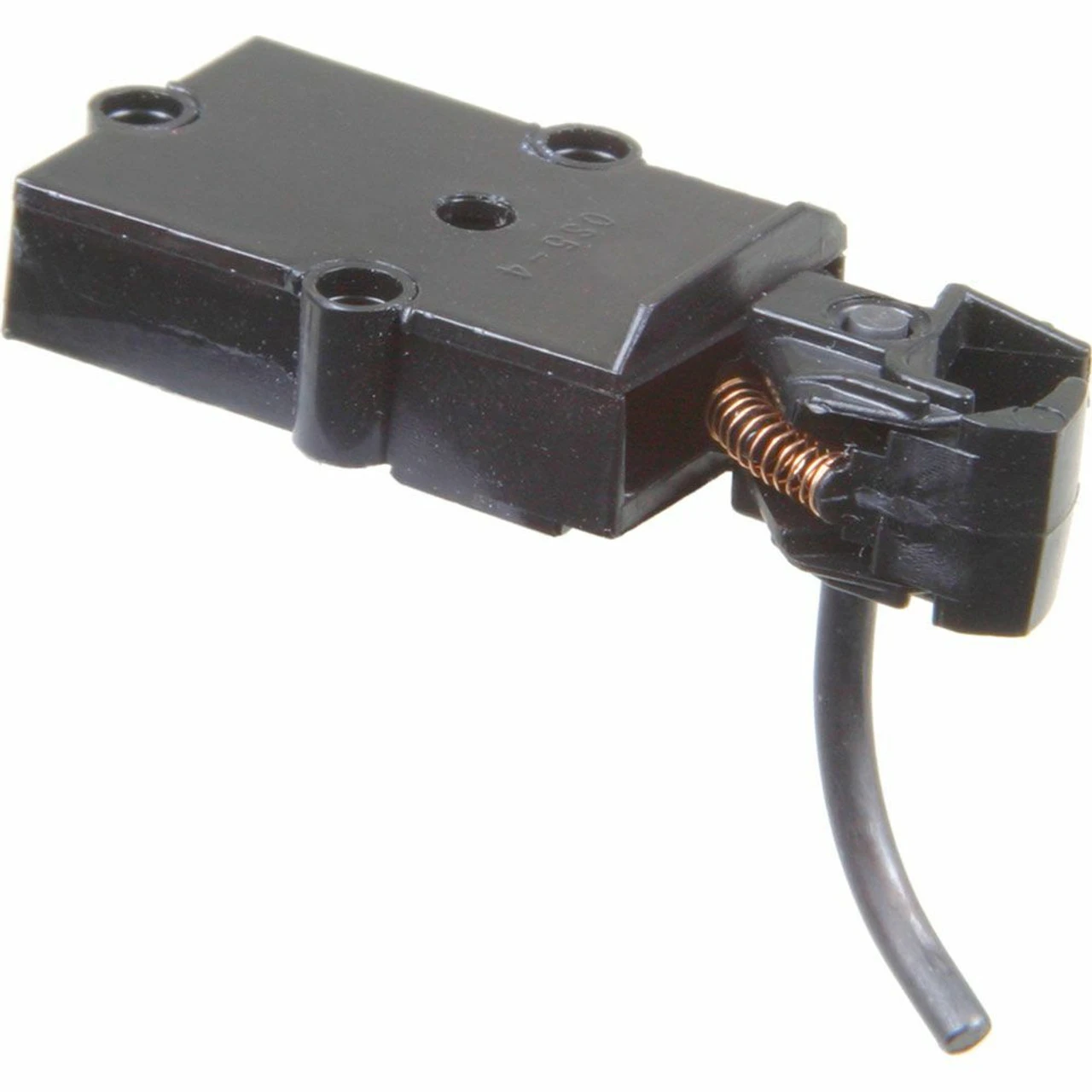

Kadee 816 O Scale Medium Centerset Metal Couplers With Plastic Gearboxes Black

This industry leading coupler features Original Style Head Medium Centerset Metal Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids. The #816 Metal Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

#816 Coupler Instructions
One pair per package
UPC: 765484008163
O-Scale

Simple Drop in Design
Trouble Free Operation
Compatible with All Kadee O-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last…

Package Includes:
(2) Each #816 Original Style Metal Couplers – Medium Centerset Shank
(2) Each #817 Plastic Gearboxes & lids
(3) Each #850 O Scale Centering Springs

#816 Plastic Coupler Features:
Material – Metal
Shank Length – Medium (47/64″) (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset – Centerset
Centering Spring – #850 O Scale Centering Springs
Knuckle Spring – #845 O Scale Knuckle Springs
Head – Original Style Head
Works In Place of – #740, #745, #800, #801, #805, & #816 O Scale Medium Centerset Shank Couplers
Works With – #817, #818, #819 Draft Gearboxes

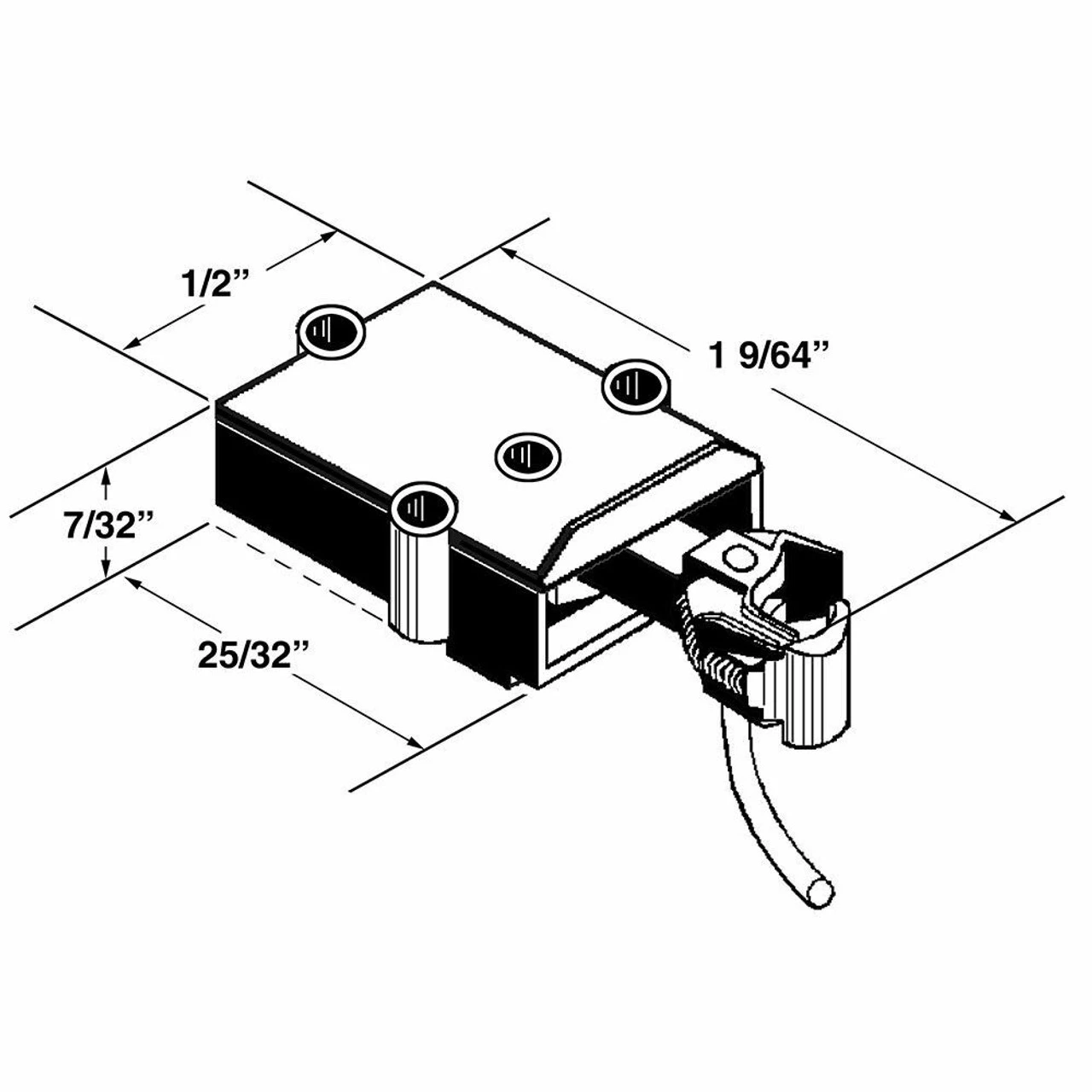

#817 Plastic Draft Gearboxes & Lids Features:
Material – Plastic
Dimensions – 25/32″L x 1/2″W x 7/32″H
Works With – #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers

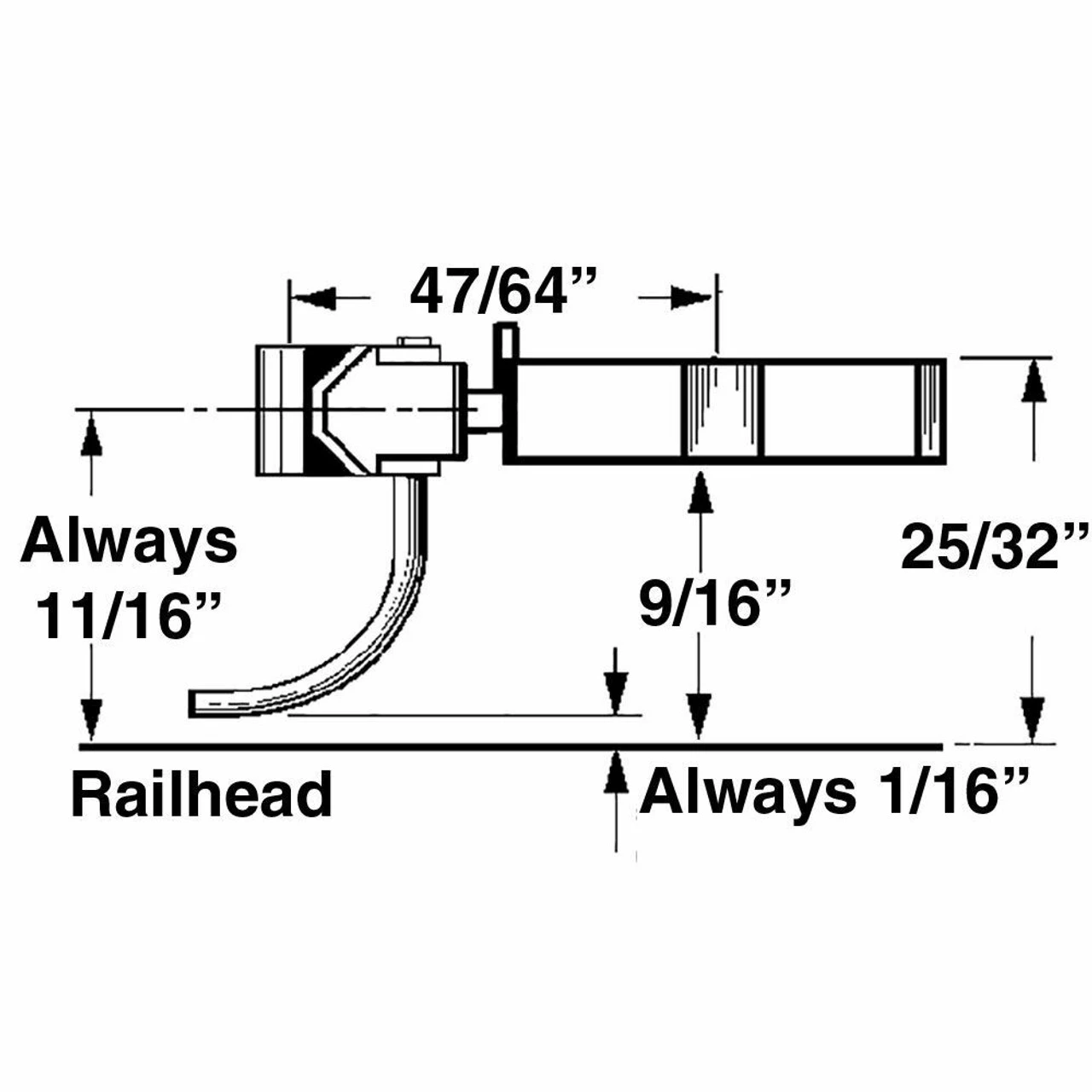

Mounting Specifications:
Mounting Height – 25/32″
Centerline – 1 1/16″
Trip Pin Height – 1/16″
Mounting Holes – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
