Traxxas TRX-4 Chevrolet K10 High Trail Edition Metallic Copper

Molded Scale Details

K10 High Trail Edition features beautiful precision-molded details for a whole new level of scale realism. The authentic chrome wheels, side mirrors, and windshield wipers provide the perfect scale touches.

Factory-Installed Long Arm Lift Kit

The Traxxas Long Arm Lift Kit includes extended GTS aluminum shocks, longer links and rod ends, extended driveshafts and T-Lock cables, and a new servo mount. The lift kit works as one coherent system not only to raise the truck, but also to maintain TRX-4’s carefully tuned suspension geometry.

Clipless Convenience

K10’s heavy-duty clipless body mounts integrate into its rugged inner fenders to form a vice-like grip. When it’s time to release the body, simply reach under the fender and pull the tabs. It’s that easy.

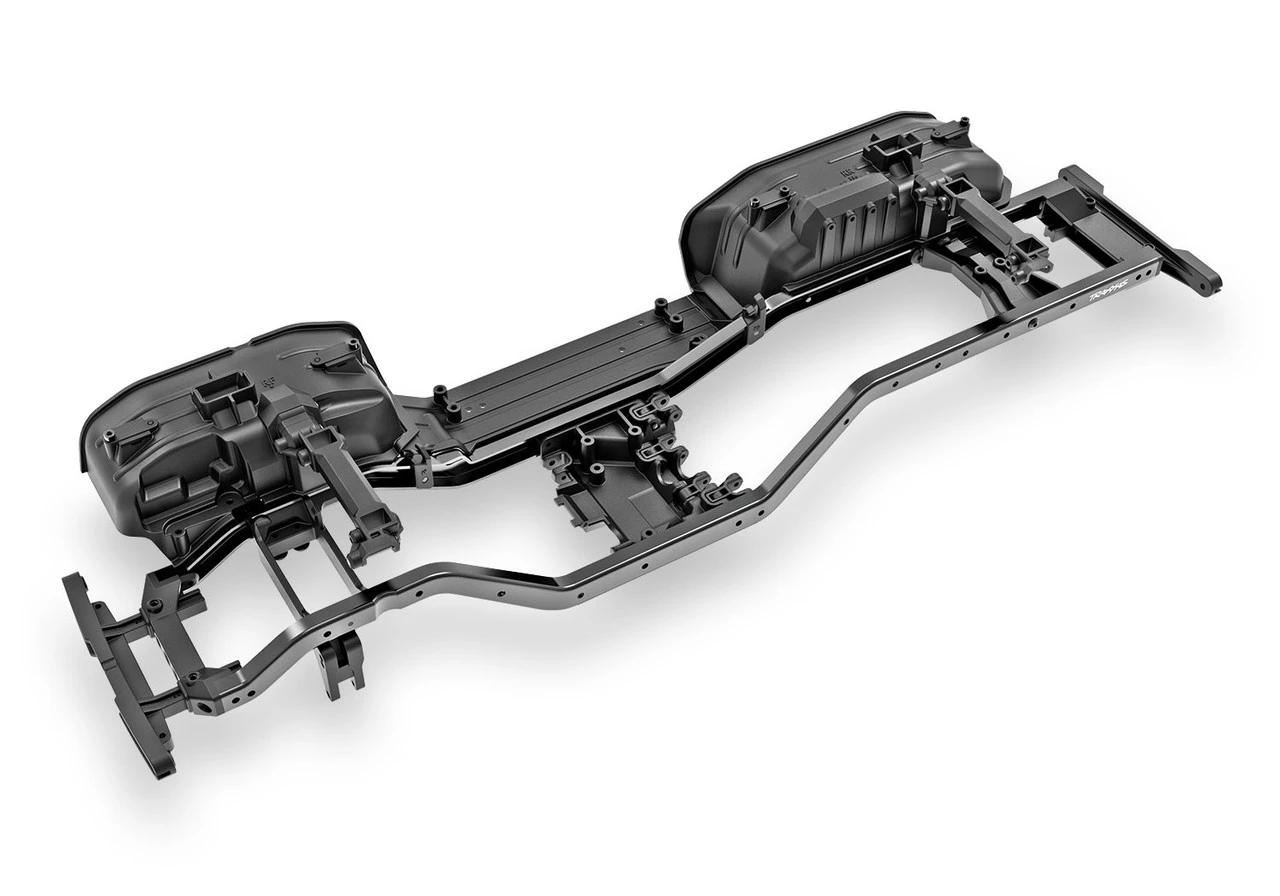

Heavy-Duty Frame Rails

A thick 1.5 mm steel ladder frame with molded cross members provides exceptional torsional rigidity to resist even the worst chassis twisting articulation. This extremely rigid backbone lets the suspension do the work it was designed to do. You’ll feel the difference on trails where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.

Chrome-Finish Differential Covers

Classic style meets modern technology underneath the K10 pickup with realistic mirror chrome differential covers. These polished details take the scale look of the front and rear portal axles to the next level.

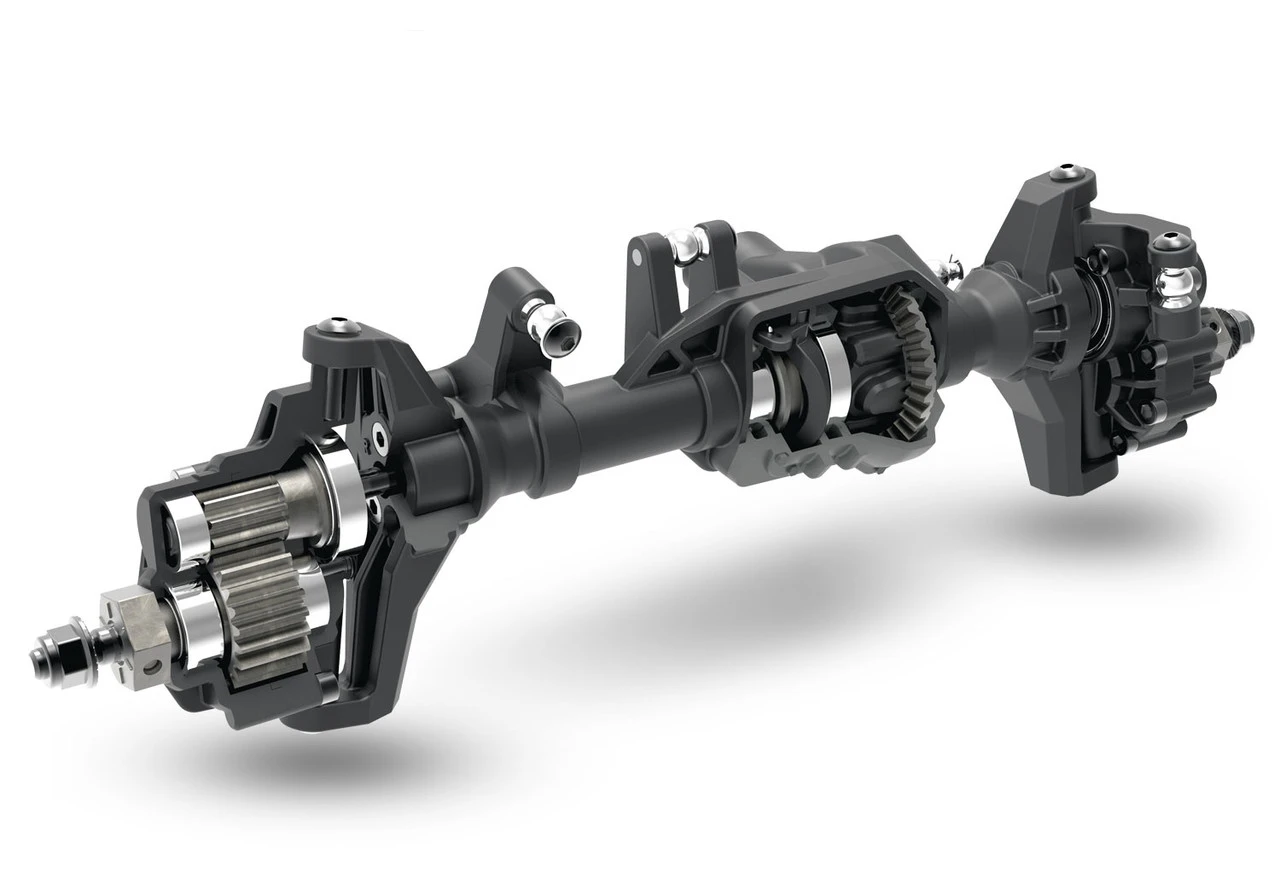

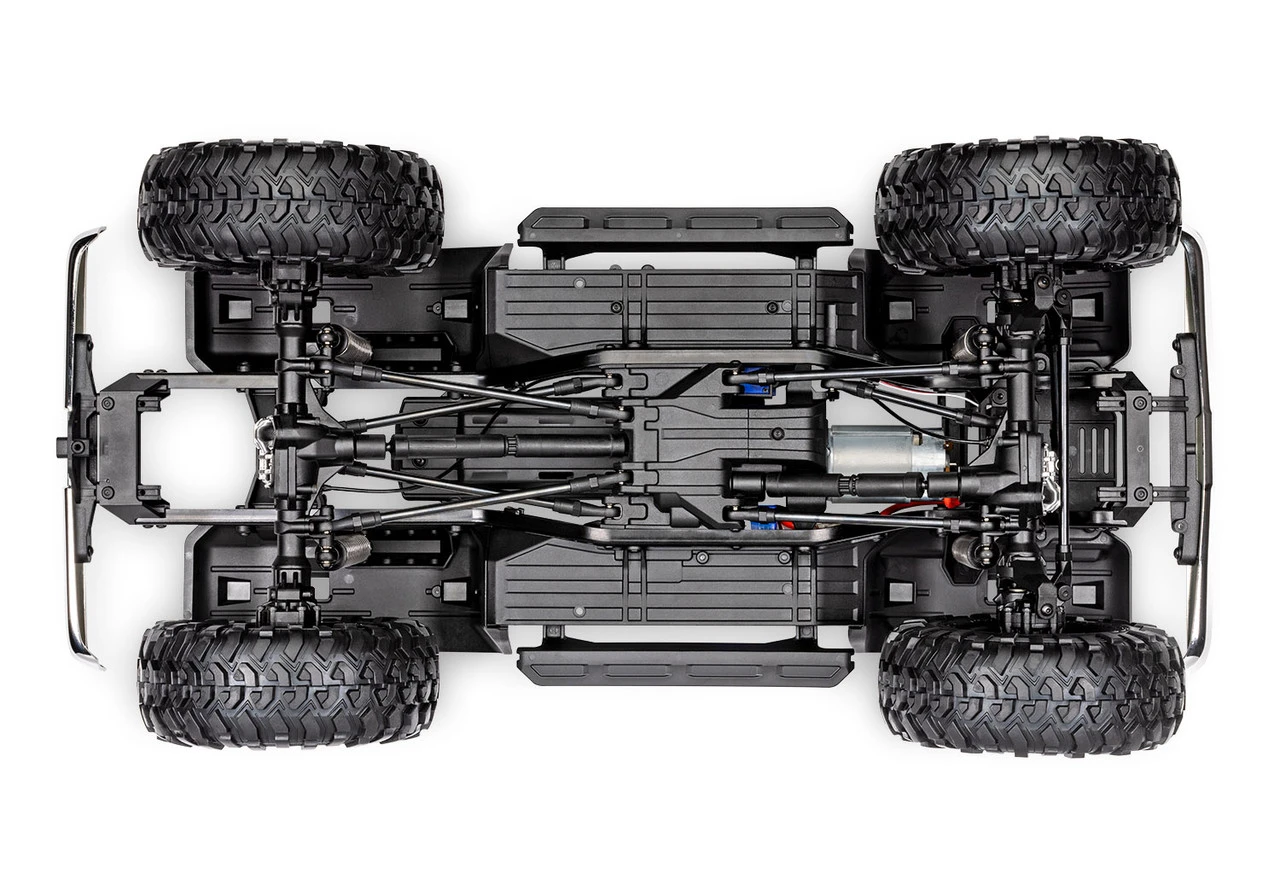

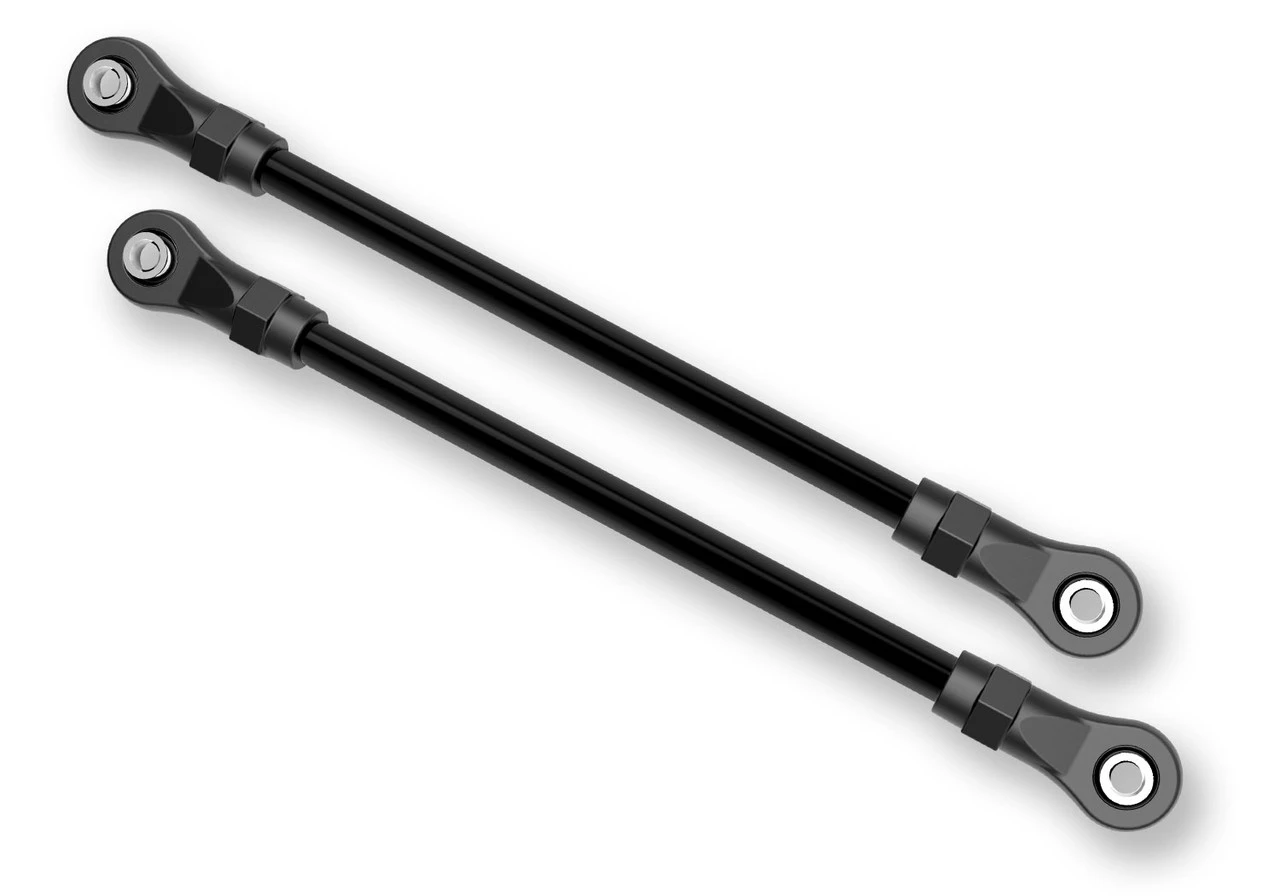

Raised Center Driveshafts and Suspension Links

TRX-4’s radical portal axle design raises the driveshafts higher to improve axle geometry and reduce driveshaft angles. Higher driveshafts and suspension links pass over obstacles to avoid high-centering your truck and reduce overall grinding wear.

High/Low Transmission

Why carry your crawler down the trail when you can drive? K10 features a high speed gear to get you to your next crawling challenge quickly. When you get there, flip the rocker switch on your transmitter to engage low range and conquer tough terrain with exceptional torque.

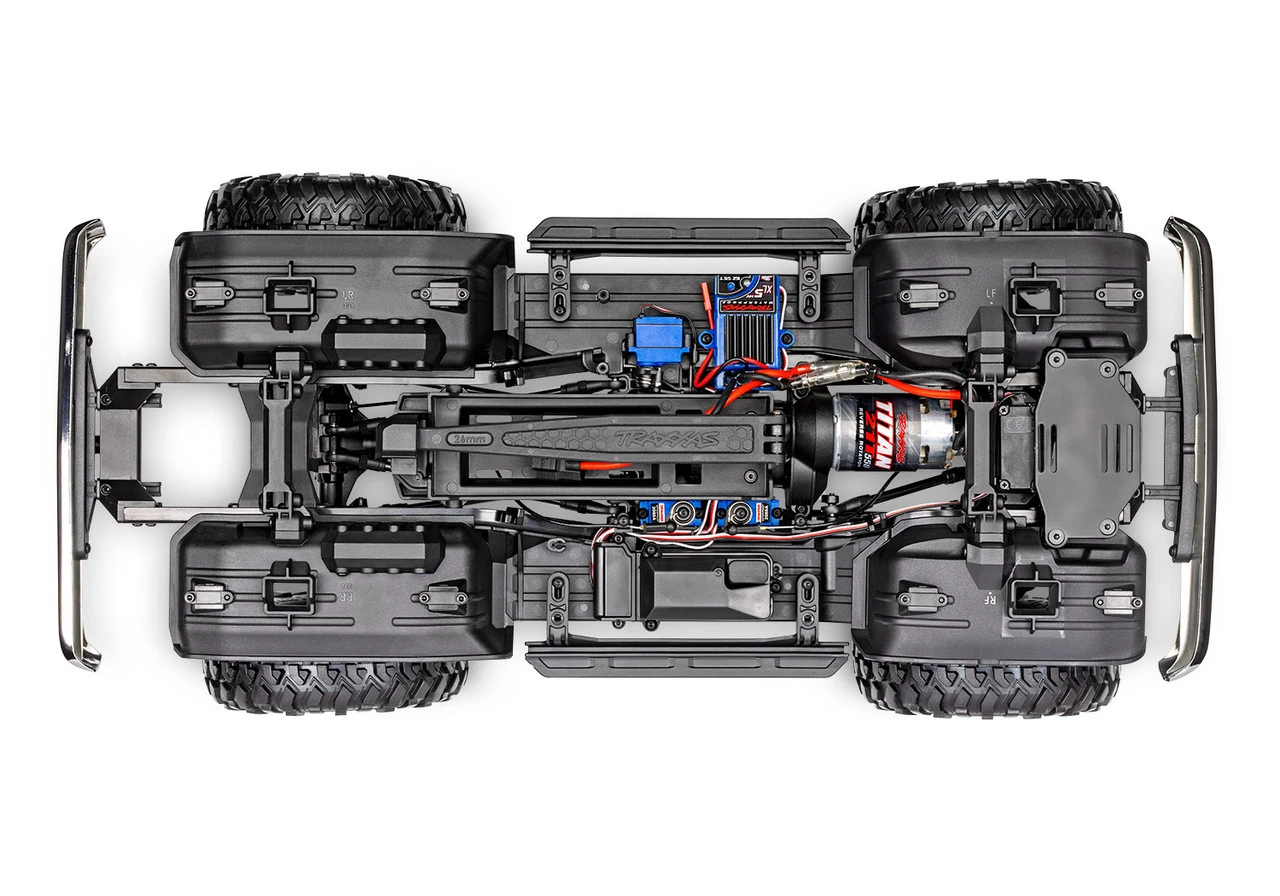

Molded Inner Fenders and Floor Pans

Tough inner fenders mount directly to the frame and shock towers to provide substantial look and feel to K10. Molded floor pans integrate into the fenders to keep rocks, mud, and twigs out of the chassis.

Titan 21T 550 Motor

Torque rules the trail! TRX-4’s massive Titan 21T motor pumps out huge torque to get you up and over anything that gets in the way. An integrated cooling fan keeps temperatures down for extended run times.

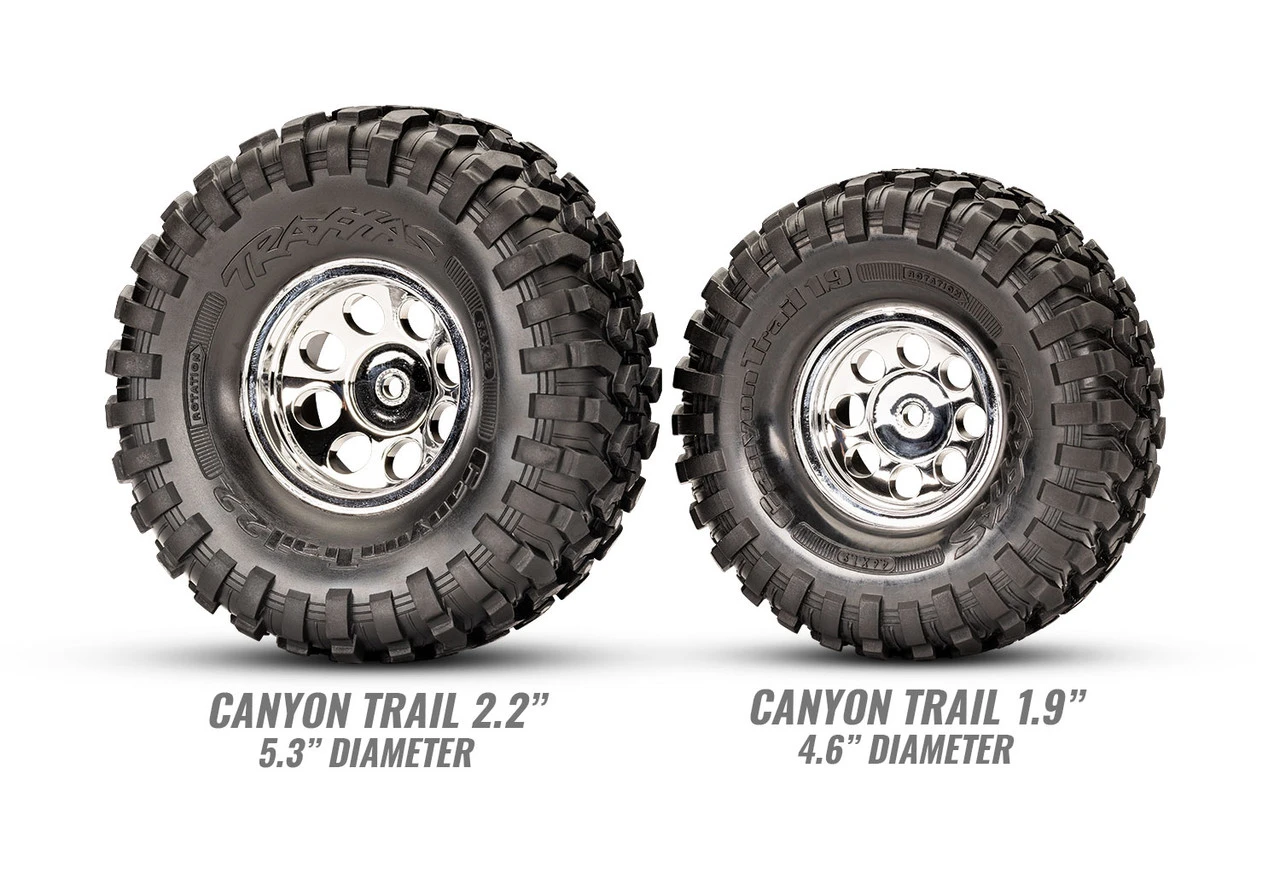

2.2” Canyon Trail Tires

K10 High Trail Edition rides on oversize Canyon Trail tires for additional ground clearance and rock-crawling performance. The ultra-soft S1-compound rubber and aggressive lug pattern delivers unmatched grip and rugged climbing action.

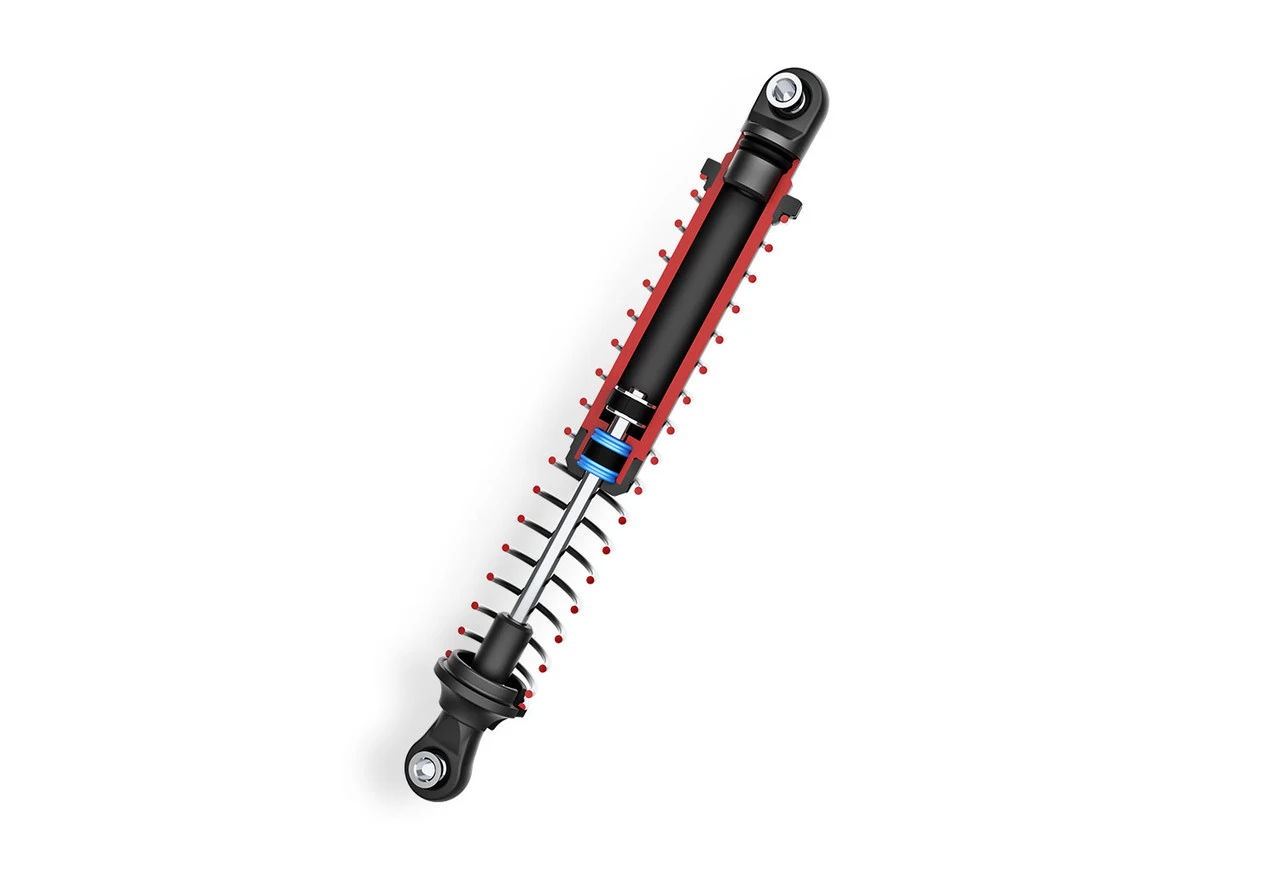

Extended-Length 110mm GTS Shocks

K10’s extra-long 110mm GTS coil-over shocks are oil-filled to smooth out even the roughest trails. These silver-anodized aluminum shocks deliver silky-smooth dampingand feature threaded bodies for easy ride height adjustment.

The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.

Torque Twist Eliminated

On conventional rigs with the limited gear reduction in the differentials, motor torque is applied to the frame to the point of twisting you right off the rocks. TRX-4’s portal axle design reduces the gear ratio at the wheels, virtually eliminating torque twist through the chassis.

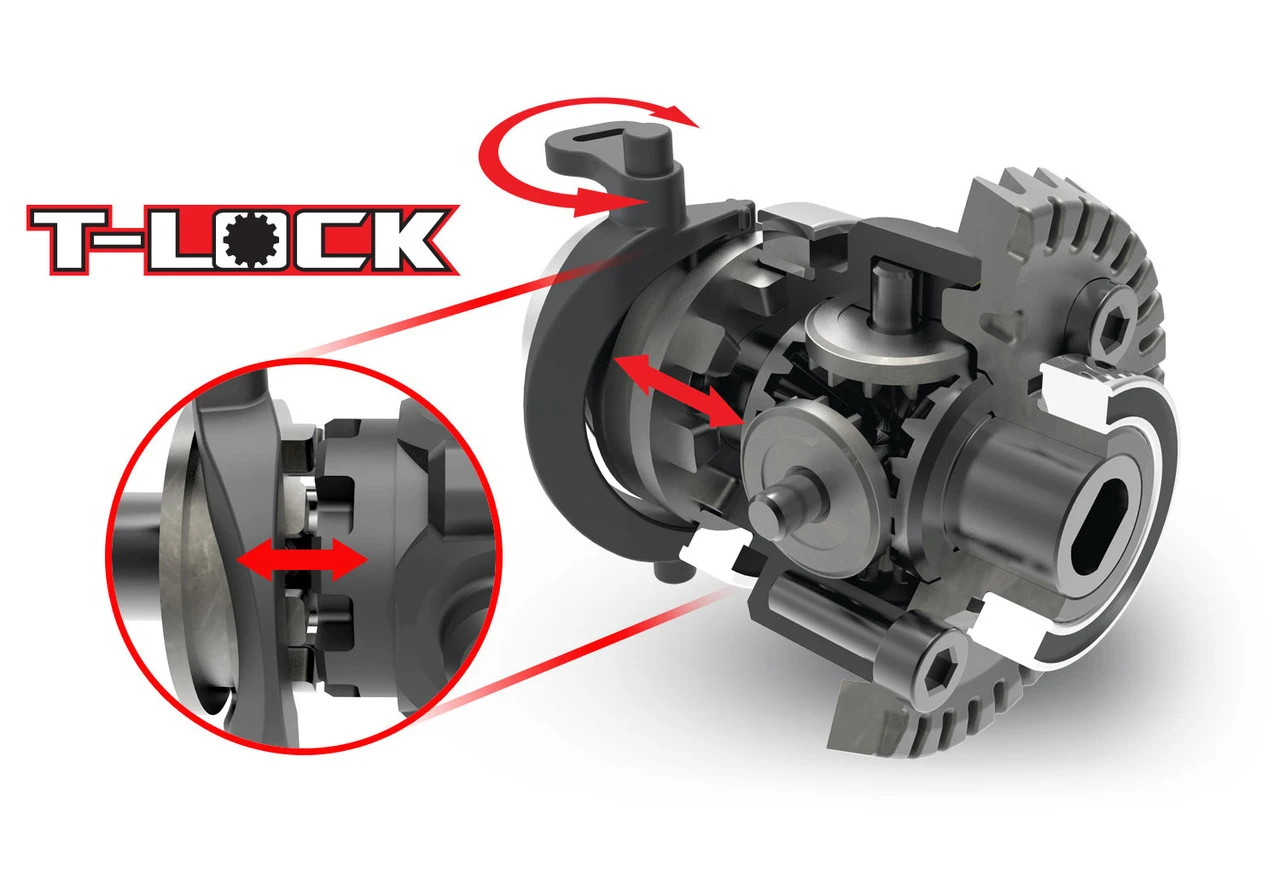

T-Lock™ Remote Locking Differentials

Traxxas gives you complete control over the front and rear differentials to suit your driving needs. Leave the differentials unlocked for relaxed driving on the trail. When the trail gets technical, lock the front and rear differentials, or just the front differential, for superior pull and grip over extreme terrain. Sleeved micro cables control the differential action for scale appearance, without limiting the huge suspension articulation.

Waterproof Metal Gear Servo

A full-metal gear digital servo gives you the durability and steering authority you need to confidently and reliably power through tough challenges.

Specs

Length: 22.20 inches (563mm)
Front Track: 10.60 inches (270mm)
Rear Track: 10.60 inches (270mm)
Center Ground Clearance: 4 inches (99mm)
Weight (w/o battery): 7.38lbs (3.35kg)
Height (overall): 10.89 inches (277mm)
Wheelbase: 13.23 inches (336mm)
Approach Angle: 70°
Departure Angle: 52°
Breakover Angle: 67°
Front Shock Length: 4.33 inches (110mm)
Rear Shock Length: 4.33 inches (110mm)
Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
Front Tires: 5.3 x 2.14 inches (135 x 54mm)
Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H

What’s In The Box:
TRX-4, Ready-To-Race® model
XL-5 HV waterproof electronic speed control
Titan® 21T reverse rotation motor
TQi™ 2.4GHz radio system with cruise control
High quality maintenance tools

What You’ll Need:
Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries with Traxxas Connector
Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
